High-salinity wastewater from new-energy, chemical, electroplating, surface-treatment, or pharmaceutical operations
Industrial water treatment · Project-specific configuration
Zero Liquid Discharge Systems
A project-specific concentration and water-recovery approach for industrial wastewater streams with demanding reduction and reuse objectives.

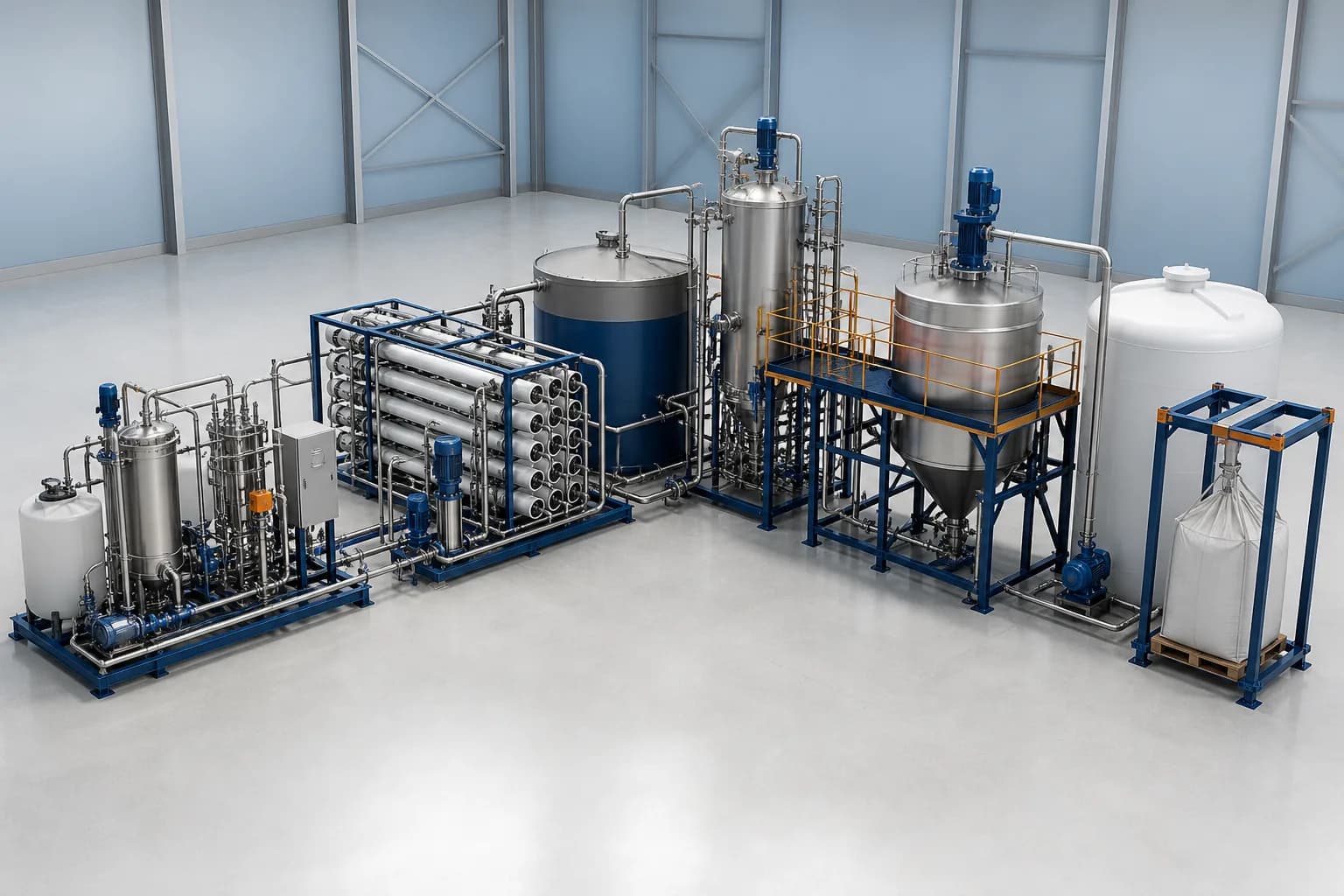

Direct answer: Baihuipu develops project-specific ZLD routes that may combine pretreatment, membrane recovery, evaporation, crystallization, recovered-water handling, and solids management. A credible design begins with a complete water and salt balance rather than a fixed packaged specification.
Configuration starts with water data, the treatment target, and site conditions.
01
Design the route from recovery to concentrate handlingThe system combines the appropriate process stages around the water-recovery and discharge-reduction goal.
Buyer fit
When This System Should Be Evaluated.
Use these application boundaries as a screening guide. Final suitability still requires representative water data and an agreed treatment objective.
Projects targeting substantial liquid-discharge reduction or a defined ZLD objective
Sites with an established recovered-water use and a legal solids-disposal route
Streams where scaling, corrosion, organics, and crystallization behavior can be evaluated
System value
A Structured Approach to Water Recovery and Reduced Discharge.
Zero liquid discharge projects rely on a carefully defined treatment route that balances feed-water conditions, recovery goals, and concentrate-handling needs.
Water recovery focus
Plan treatment and recovery stages around the project’s reuse target.
Concentrate management
Coordinate the necessary concentration and downstream handling steps.
Connected system scope
Align pretreatment, separation, and recovery equipment within one project route.
Selection basis
What Defines the Right Configuration.
Capacity, materials, utilities, automation, and guaranteed performance are confirmed against these project inputs—not assumed from a generic model.
| Decision input | What the technical review needs |
|---|---|
| Water and salt balance | Full ionic analysis, COD or organics, suspended solids, flow variation, and existing treatment stages |
| Recovery objective | Required water recovery, concentrate volume, reuse point, and acceptable operating margins |
| Concentration behavior | Scaling, corrosion, foaming, precipitation, crystallization, and expected solids characteristics |
| Site and residuals | Energy and utilities, operating schedule, footprint, redundancy, condensate target, and lawful solids disposal |
Typical treatment route
Build the Recovery Route from the Water Characteristics Up.
The suitable zero liquid discharge scope depends on wastewater composition, recovery expectations, and operational requirements.
Wastewater assessment
Review the stream and the expected recovery objective.
Pretreatment
Condition water for the selected recovery and concentration stages.
Recovery & concentration
Recover suitable water while concentrating the residual stream.
Final handling
Coordinate the next treatment or handling requirement for concentrate.
Relevant project context
Selected Anonymous Project Records.
These records help buyers understand comparable water types and scales. They are not a promise that another project will use the same process or achieve the same result.
Pickling and passivation wastewater
A ZLD-related project record is available; the detailed process and results are not published
Degreasing wash water
A ZLD-related project record is available; the detailed process and results are not published
Arsenic-bearing wastewater
The record combines arsenic-wastewater treatment with an evaporation stage
Prepare a useful RFQ
Send the Data That Changes the Design.
A quotation becomes more reliable when the design basis and project boundaries are visible from the start.
Send Your RequirementsFull ionic and wastewater analysis
Average, peak, and batch flow
Existing treatment process
Recovery and concentration targets
Recovered-water use
Solids characteristics and disposal route
Utilities, footprint, and operating schedule
Buyer FAQ
Questions to Resolve Before Selection.
These answers define the decision process without turning project-specific values into universal specifications.
Does ZLD mean no waste leaves the site?
No. ZLD addresses liquid discharge, but the system still produces solids, sludge, or concentrate that require a lawful and technically suitable handling route.
Can ZLD be selected from flow alone?
No. A complete ionic analysis, organics, suspended solids, scaling and corrosion risks, flow variation, and the existing treatment route are essential.
Is an evaporator alone a ZLD system?
Not always. Pretreatment, membrane recovery, evaporation, crystallization, recovered-water conditioning, and solids handling may all be part of the final route.
How is the recovery target determined?
It is balanced against feed chemistry, scaling and corrosion limits, energy, concentrate behavior, reuse demand, reliability, and the solids-disposal plan.
What should be included in a ZLD RFQ?
Include full water analysis, flow profile, existing treatment, recovery and crystallization goals, utility limits, operating schedule, footprint, recovered-water use, and solids disposal.
Company context
Engineering and Manufacturing in Dongguan.
Guangdong Baihuipu Environmental and Energy Conservation Development Co., Ltd. was established in 2007 and integrates R&D, manufacturing, and sales.
- 150+ employees and 50 technical professionals
- Factory workshops and a wastewater laboratory shown in company materials
- Project references across multiple international markets
Discuss your requirement
Turn Your Project Data into a Clear Technical Scope.
Share your full water analysis, flow, recovery target, and solids-disposal plan for a ZLD process review.
